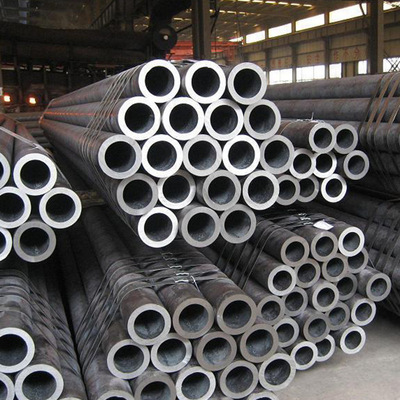

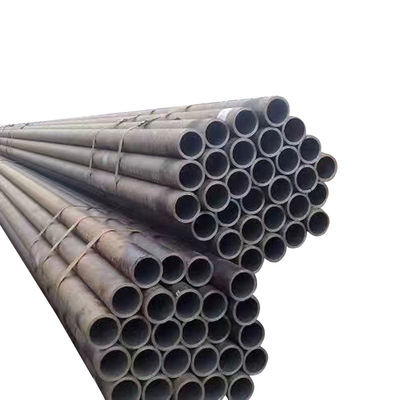

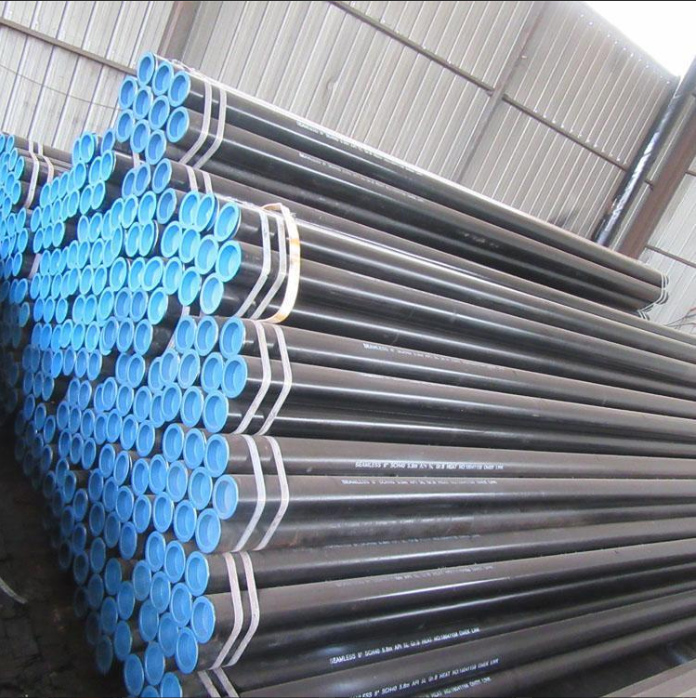

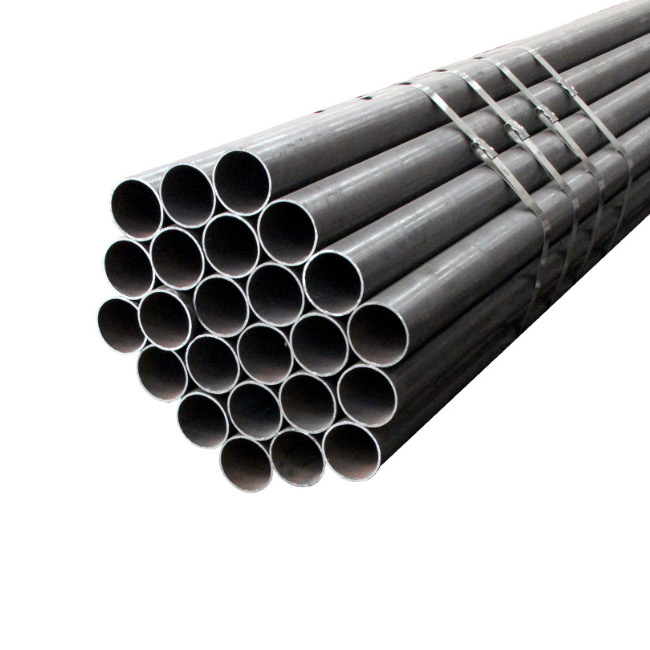

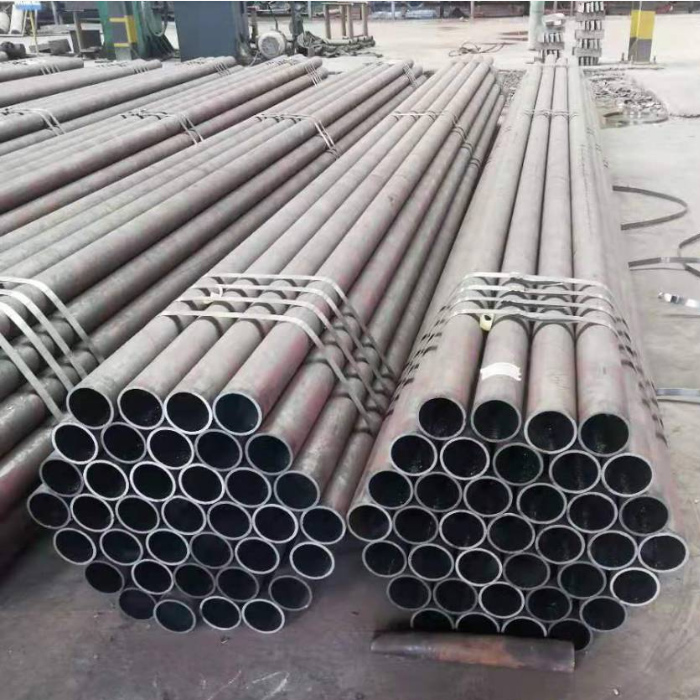

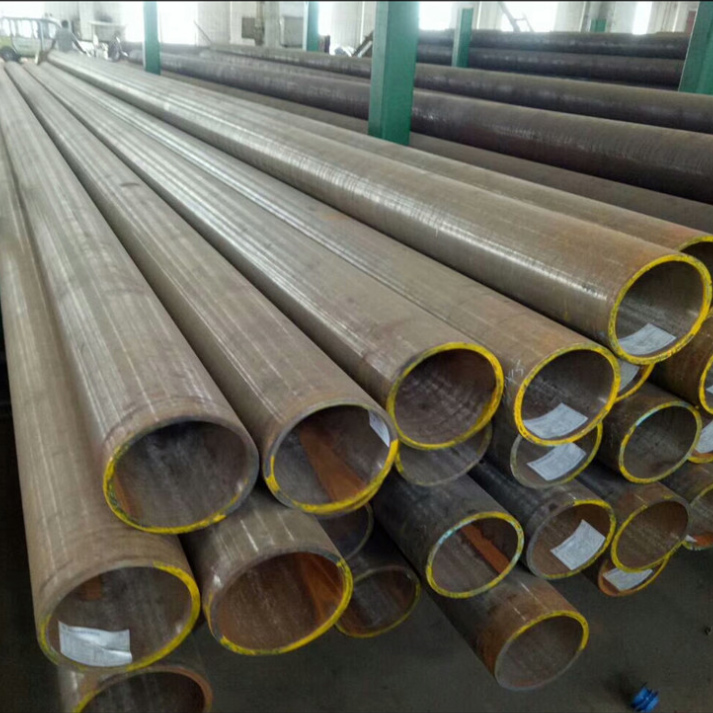

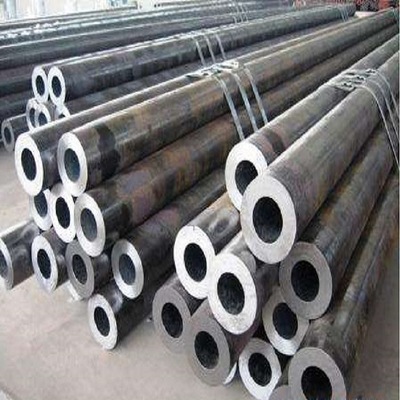

Seamless Steel Pipe
1. Competitive price and quality from our own factory
2. Approved by ISO9001, CE, SGS every year
3. Best service with 7*24 hour’s reply
4. Flexible payment with T/T, 100%LC, etc
5. Smooth production ability (50000tons/month)
6. Quick delivery and standard exporting package
7. OEM/ODM
Product description:
Seamless steel pipe is made of a whole round steel with holes, and there is no weld on the surface. It can be hot rolled, cold rolled or cold drawn. It is mainly used as a pipeline or structural part for conveying fluids.
We offer a variety of shapes, including rectangular, square, hexagonal, round, and oval, with surface finishes such as black painted, PE painted, galvanized, color coated, anodized, anti-rust varnished, and anti-rust oiled.
Product parameters:
Iterm | Seamless steel pipe |
Standard | ASTM JIS DIN GB BS 1387, ASTM A53-2007, API, API 5L, JIS G3444-2006, GB/T 3091-2001 |
Material | 10#,20#,45#,16Mn,API J55,API K55 Q235, ST37, ST42, A53(A,B), A106(B,C) |
Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe, Other |
Packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required |
Payments | TT 100%LC |
Outer Dia | 13mm-610mm |
Thickness | 1-220mm |
Nominal Pipe size | OD mm | SCH40 | SCH80 | SCH160 |
WT (mm) | WT (mm) | WT (mm) | ||
1/4” | 13.7 | 2.24 | 3.02 | |
3/8” | 17.1 | 2.31 | 3.2 | |
1/2” | 21.3 | 2.77 | 3.73 | 4.78 |
3/4” | 26.7 | 2.87 | 3.91 | 5.56 |
1” | 33.4 | 3.38 | 4.55 | 6.35 |
1-1/4” | 42.2 | 3.56 | 4.85 | 6.35 |
1-1/2” | 48.3 | 3.68 | 5.08 | 7.14 |
2” | 60.3 | 3.91 | 5.54 | 8.74 |
2-1/2” | 73.0 | 5.16 | 7.01 | 9.53 |
3” | 88.9 | 5.49 | 7.62 | 11.13 |
4” | 114.3 | 6.02 | 8.56 | 13.49 |
5” | 141.3 | 6.55 | 9.53 | 15.88 |
6” | 168.3 | 7.11 | 10.97 | 18.26 |
8” | 219.1 | 8.18 | 12.7 | 23.01 |
10” | 273.0 | 9.27 | 15.09 | 28.58 |
12” | 323.8 | 10.31 | 17.48 | 33.32 |
14” | 355.6 | 11.13 | ||
16” | 406.4 | 12.7 | ||
18” | 457.2 | 14.27 | ||
20” | 508 | 15.09 | ||
24” | 609.6 | 17.48 | ||
This specification is a fixed length of 6 meters. Support customization according to customer requirements. | ||||

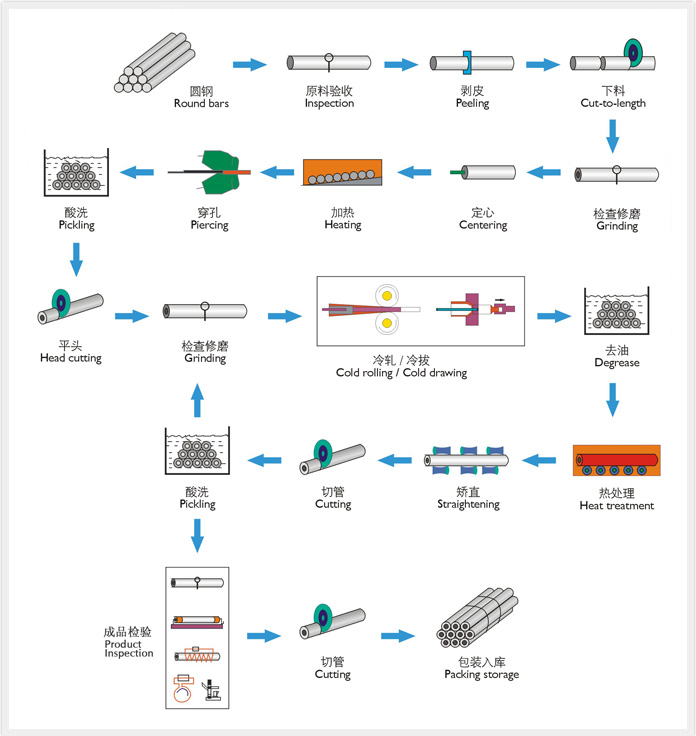

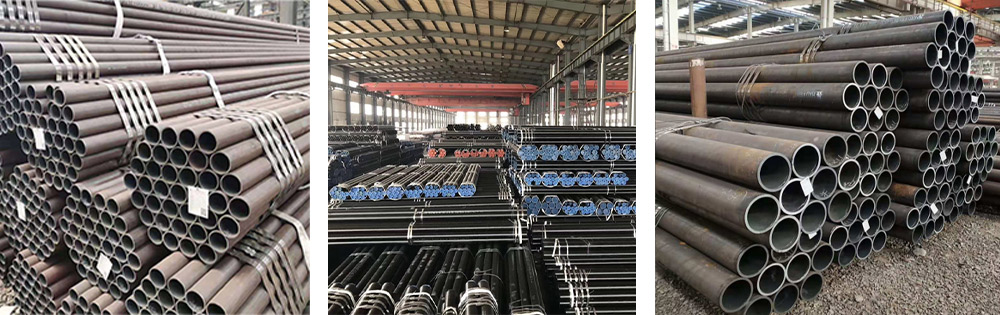

Production process:

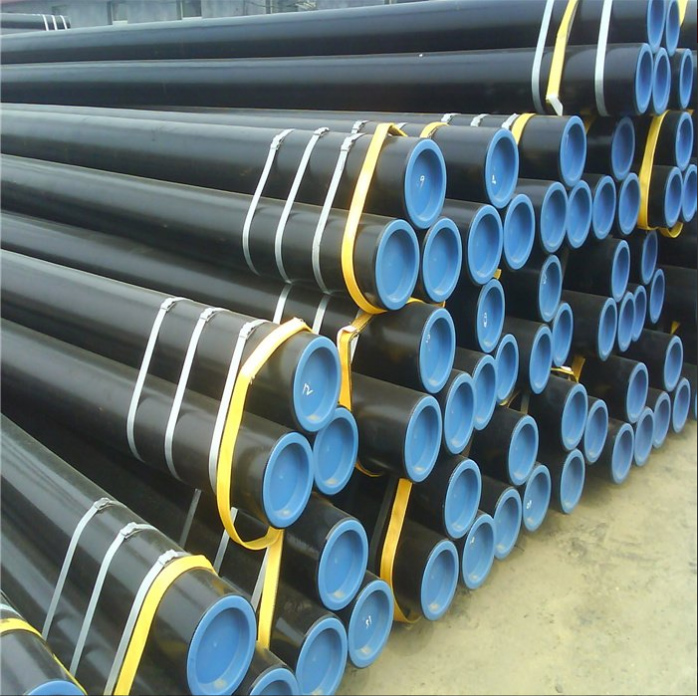

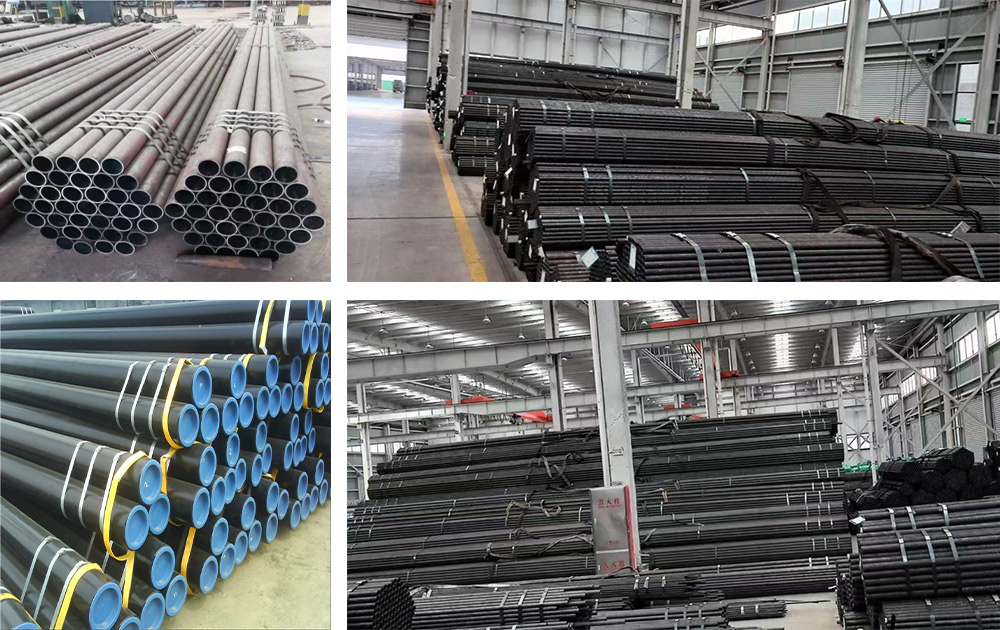

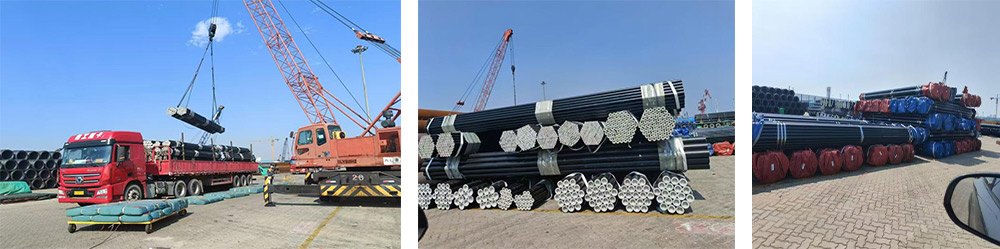

Transportation & packaging：
We offer high-quality service with 24/7 online support.
