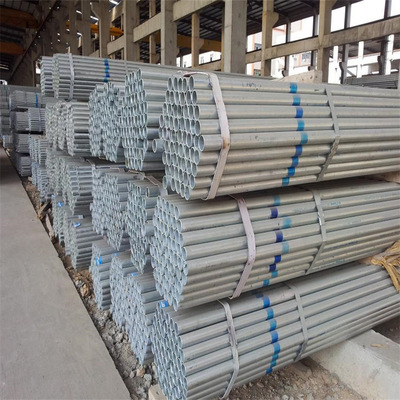

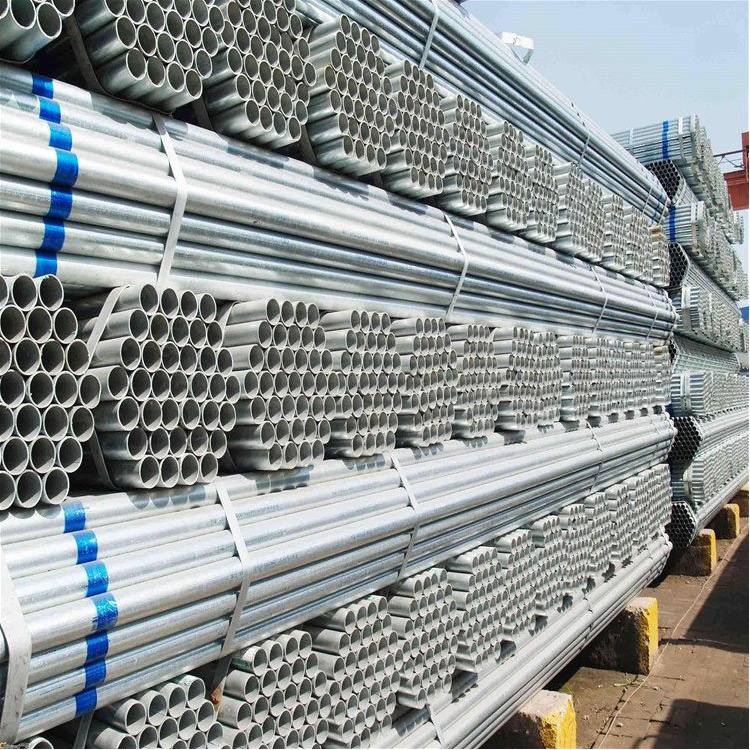

Galvanized Steel Pipe

1. Competitive price and quality from our own factory

2. Approved by ISO9001, CE, SGS every year

3. Best service with 7*24 hour’s reply

4. Flexible payment with T/T, 100%LC, etc

5. Smooth production ability (50000tons/month)

6. Quick delivery and standard exporting package

7. OEM/ODM

Contact Now E-Mail WhatsApp

Product Details

Product description:

Galvanized steel pipes are essential components in various construction and plumbing applications, known for their corrosion resistance and durability. These pipes are coated with a layer of zinc to protect against rust and environmental factors, making them an ideal choice for both indoor and outdoor use. In production, the shape of galvanized pipes can be round or rectangular. It is often used in environments that require anti-corrosion or humidity.

Galvanized pipes are primarily made from steel, which is then coated with zinc through a process known as galvanization. The zinc coating serves as a barrier between the steel and the environment, preventing corrosion.

Galvanized Steel Pipe

Product parameters:

Material Type	Description
Steel	The base material, usually carbon steel, providing strength and support.
Zinc Coating	A protective layer applied to the steel to prevent rust and corrosion.
Standard	GB/T3091, EN10219, ASTM A53, ASTM A500
Production Process	Hot-dipped, Cold Drawn

Galvanized pipes come in various sizes and specifications, making them versatile for different applications.

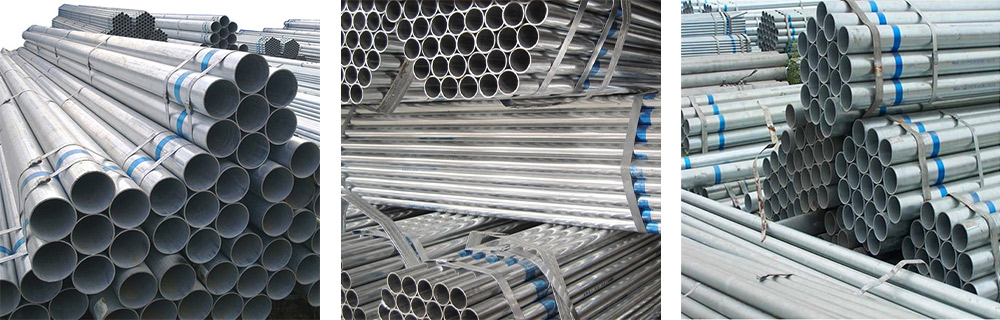

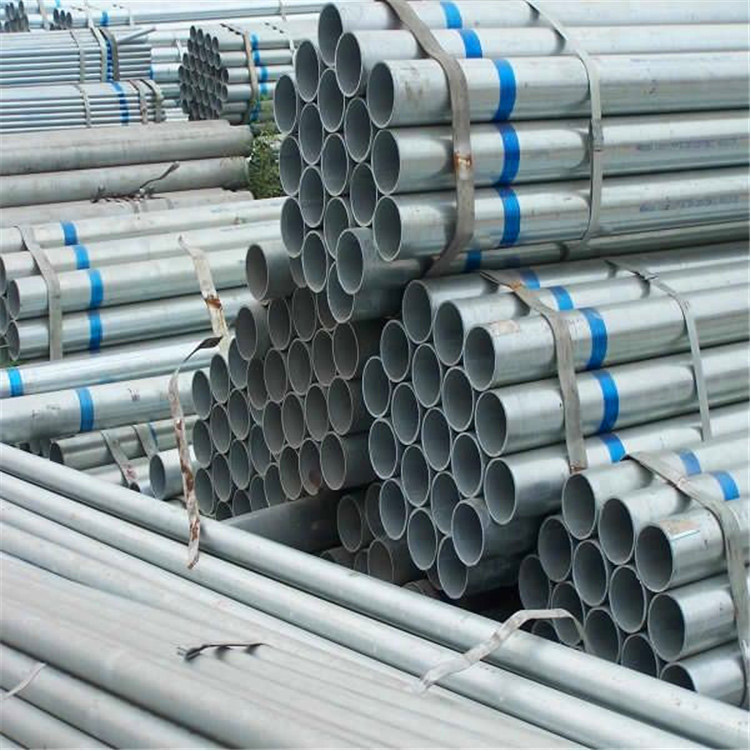

Round Pipes Specifications:

Specification	Description
Diameter	Ranges from ½ inch to 12 inches (or larger upon request).
Wall Thickness	Varies from schedule 10 to schedule 80, depending on the application.
Length	Standard lengths are typically 20 feet (6 meters), but custom lengths are available.
Coating Thickness	Generally ranges from 1.0 to 3.0 mils, depending on the intended use.
Standards	Complies with ASTM A53, ASTM A500, and other relevant standards.

Galvanized Steel Pipe

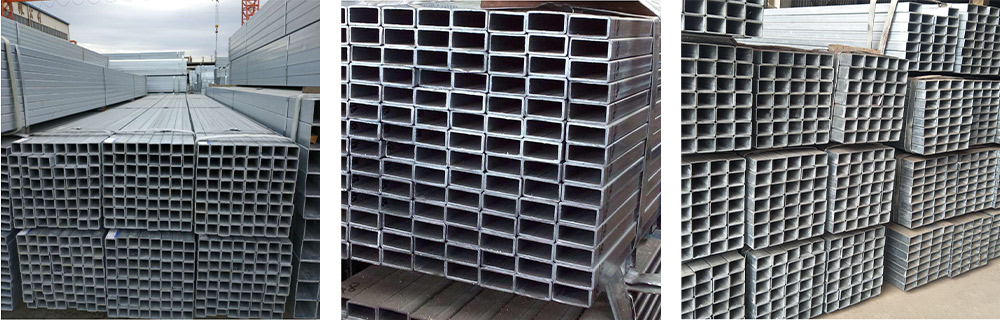

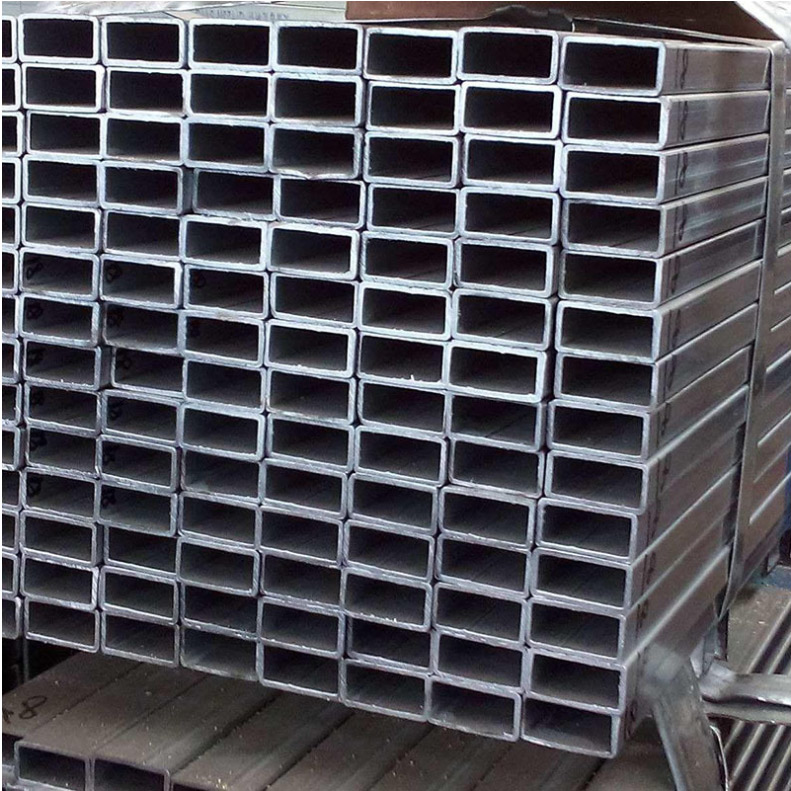

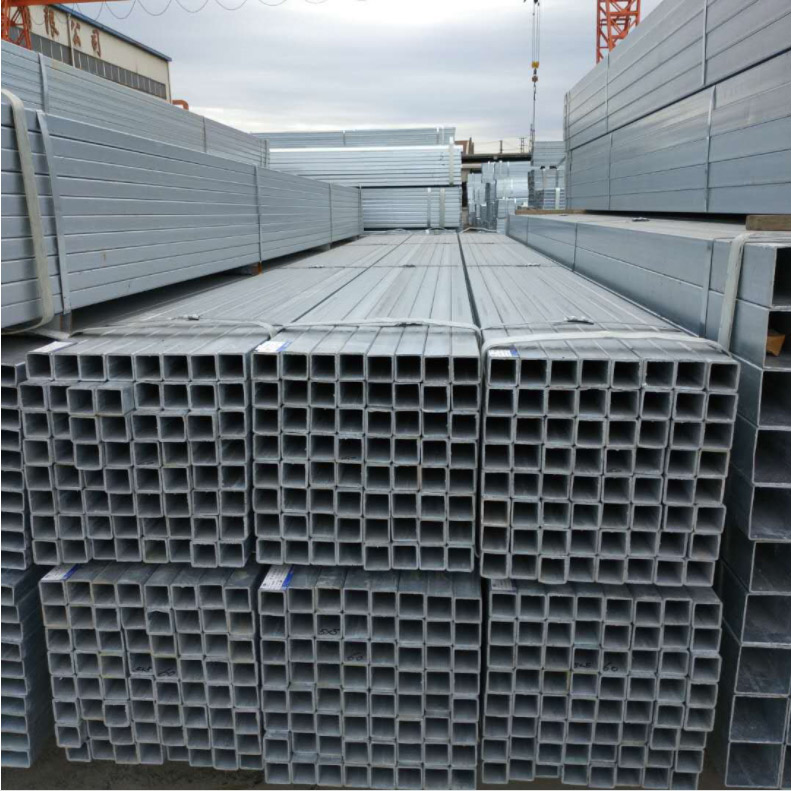

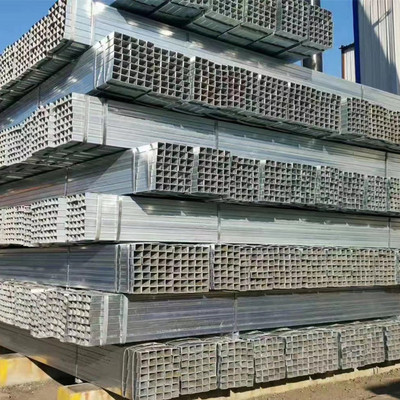

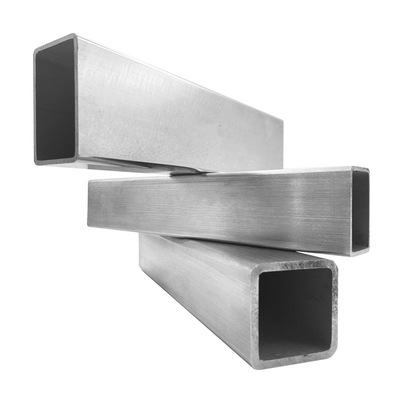

Rectangular Pipes Specifications:

Specification	Description
Side Length (mm)	20 - 200
Wall Thickness (mm)	1.5 - 10
Length (m)	6 - 12
Standard	ASTM A500, ASTM A36, EN 10219
Application	Construction, Furniture, Fencing

Galvanized Steel Pipe

Galvanized Steel Pipes Specifications:

Pipe Size (Nominal)	Outer Diameter (OD) (mm)	Wall Thickness (mm)	Weight (kg/m)
1/2"	21.3	2.0	1.8
3/4"	26.9	2.0	2.3
1"	33.7	2.3	3.1
1 1/4"	42.4	2.3	4.0
1 1/2"	48.3	2.3	4.7
2"	60.3	2.6	6.0
2 1/2"	76.1	2.6	7.7
3"	88.9	3.2	9.4
4"	114.3	3.2	12.7
5"	141.3	3.6	16.0
6"	168.3	3.6	19.0
8"	219.1	4.0	27.5
10"	273.0	4.5	35.0
12"	323.9	4.5	43.0
14"	355.6	4.5	48.0
16"	406.4	5.0	56.0
18"	457.2	5.0	64.0
20"	508.0	5.0	72.0
24"	609.6	5.0	85.0

Applications:

1. Plumbing: Used for water supply lines, drainage systems, and sanitary applications.

2. Construction: Employed in structural applications, scaffolding, and framework.

3. Agriculture: Ideal for irrigation systems, livestock watering systems, and fencing.

4. HVAC Systems: Utilized in heating, ventilation, and air conditioning systems for air ducts.

5. Industrial: Commonly used in manufacturing processes, chemical handling, and transport.

Notes:

The outer diameters and wall thicknesses are based on standard specifications. Support customization, can produce pipes with different outer diameters and wall thicknesses according to customer requirements

Weight is approximate and can differ based on the exact wall thickness and material used.

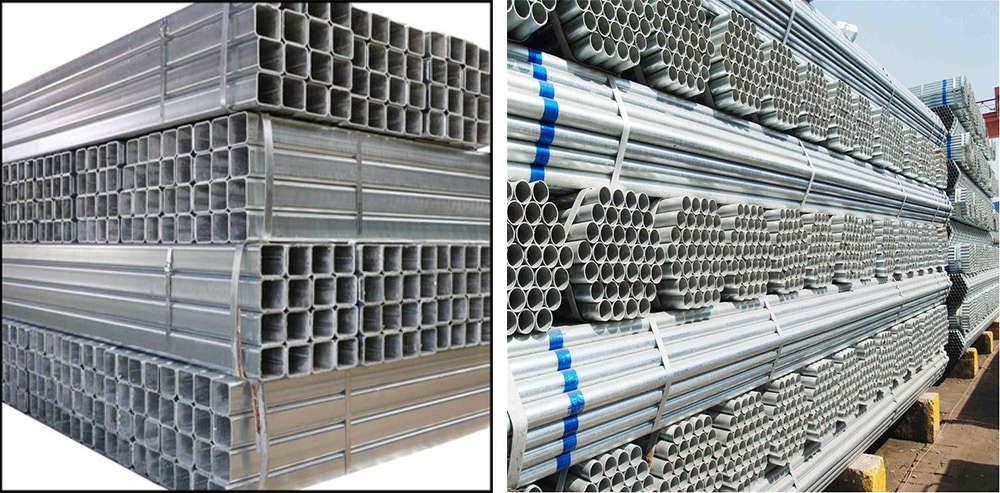

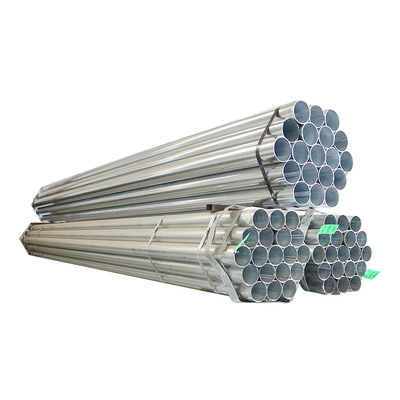

Transportation & packaging：

Galvanized Steel Pipe

Conclusion:

Galvanized pipes are a reliable and cost-effective solution for a variety of applications. Their resistance to corrosion and structural integrity makes them a preferred choice for many industries. Whether you are looking for pipes for plumbing, construction, or industrial applications, galvanized pipes offer durability and longevity.

For more information or to request a quote, feel free to contact us!
