Channel Steel

1. Competitive price and quality from our own factory

2. Approved by ISO9001, CE, SGS every year

3. Best service with 7*24 hour’s reply

4. Flexible payment with T/T, 100%LC, etc

5. Smooth production ability (50000tons/month)

6. Quick delivery and standard exporting package

7. OEM/ODM

Contact Now E-Mail WhatsApp

Product Details

Product description:

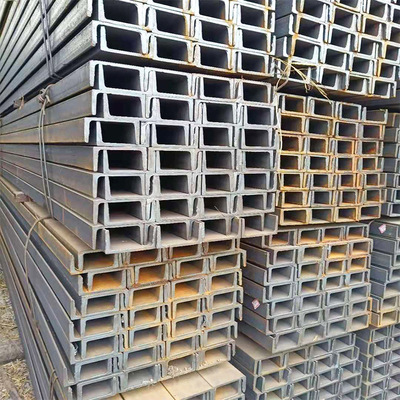

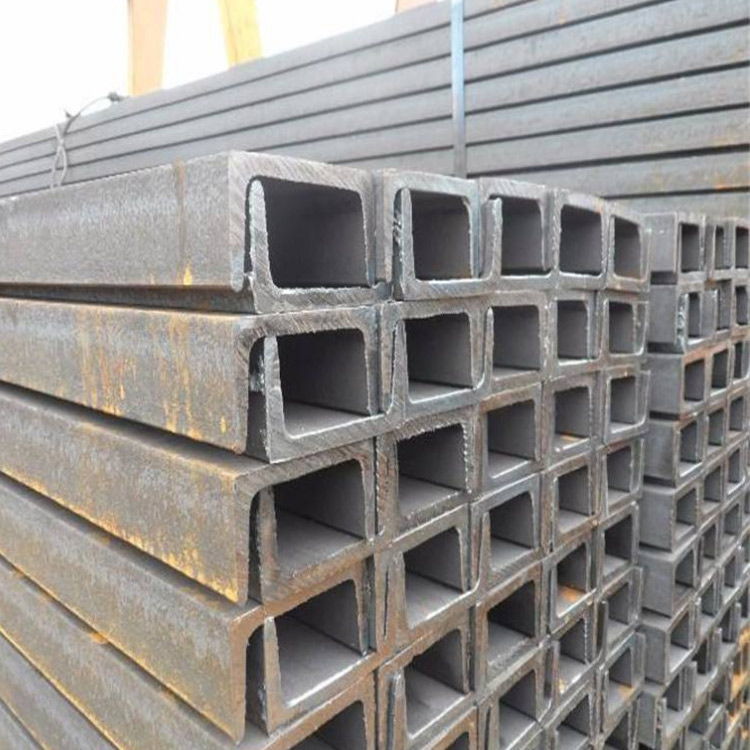

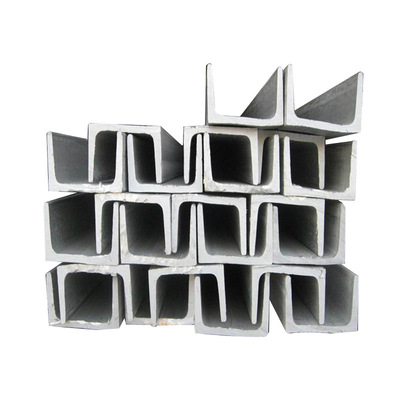

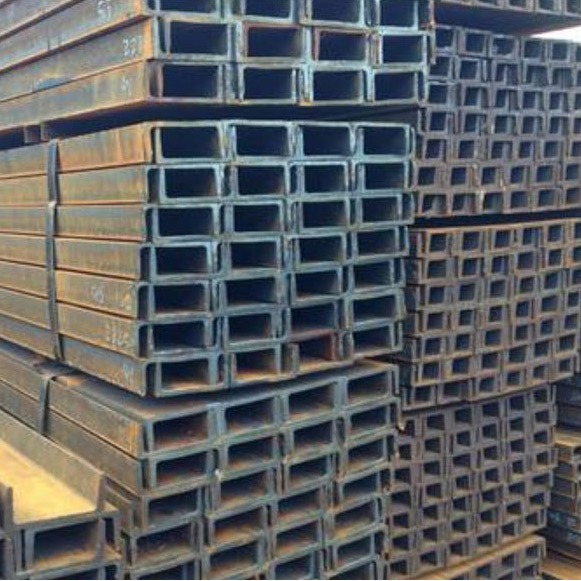

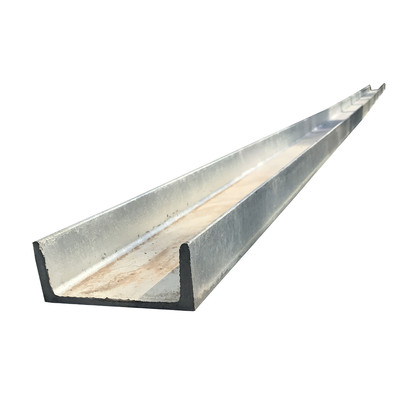

Channel steel is a long strip of steel with a fluted section. It is a carbon structural steel for construction and machinery. It is a shaped steel with a complex section and its section shape is a fluted one. Channel steel is mainly used in building structure, curtain wall engineering, mechanical equipment and vehicle manufacturing.

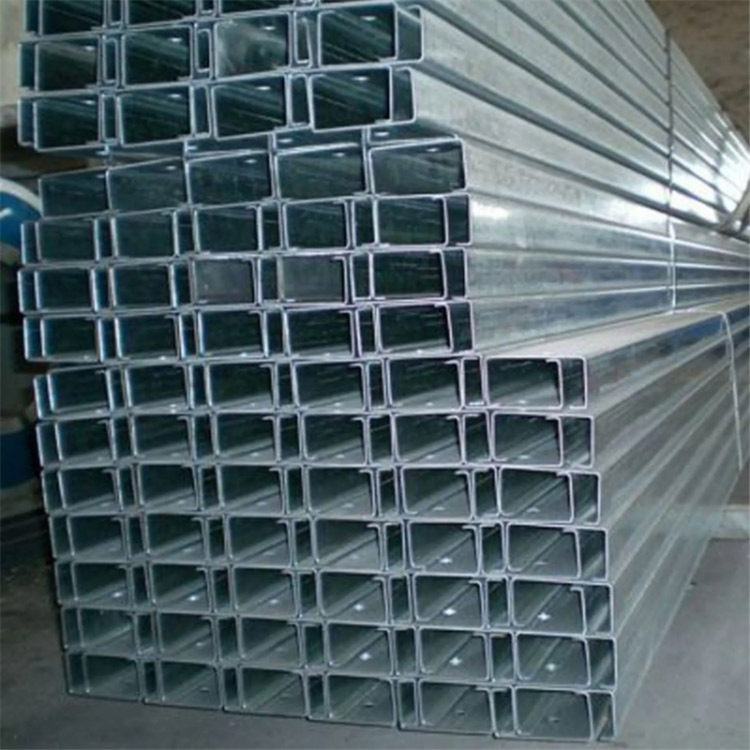

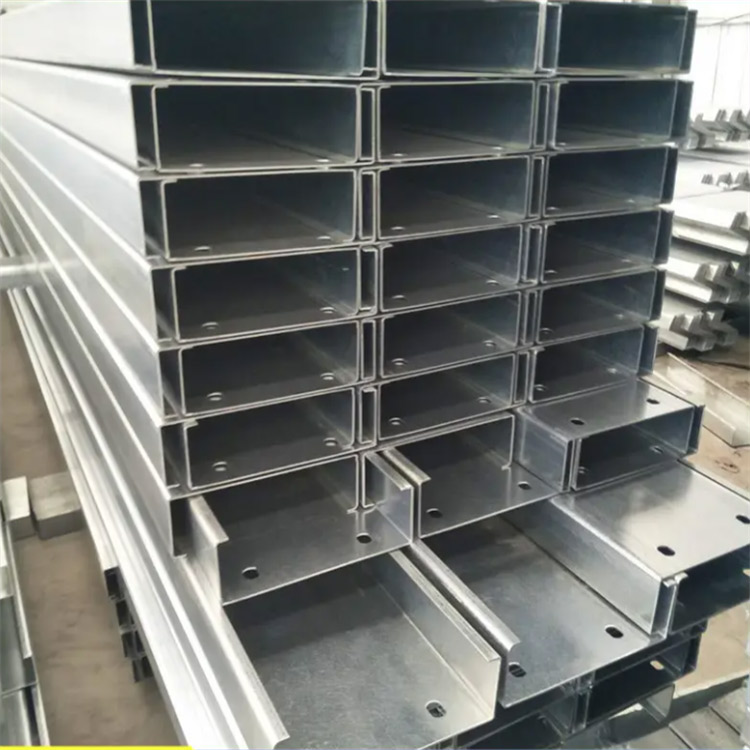

U-Type and C-Type steel shapes are available.

The surface finishes include black painted, PE painted, galvanized, color coated, anodized, anti-rust varnished, and anti-rust oiled, among others.

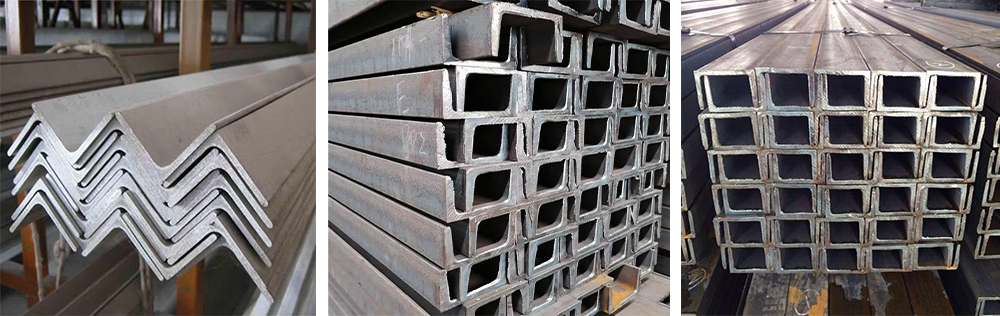

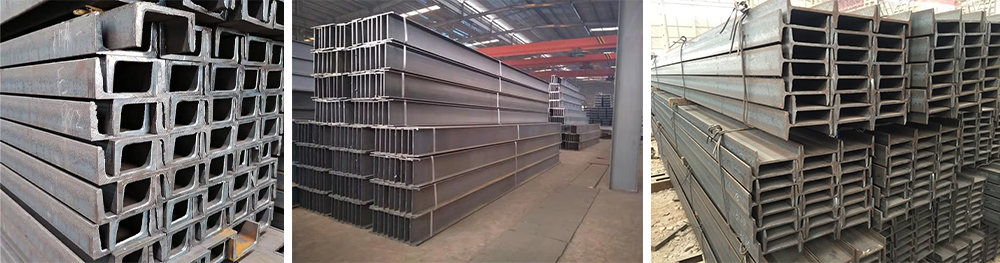

Channel Steel

Product parameters:

Product Name	Channel Steel
Material	Carbon steel/Stainless steel/Galvanized steel
Length	According to customer requirements

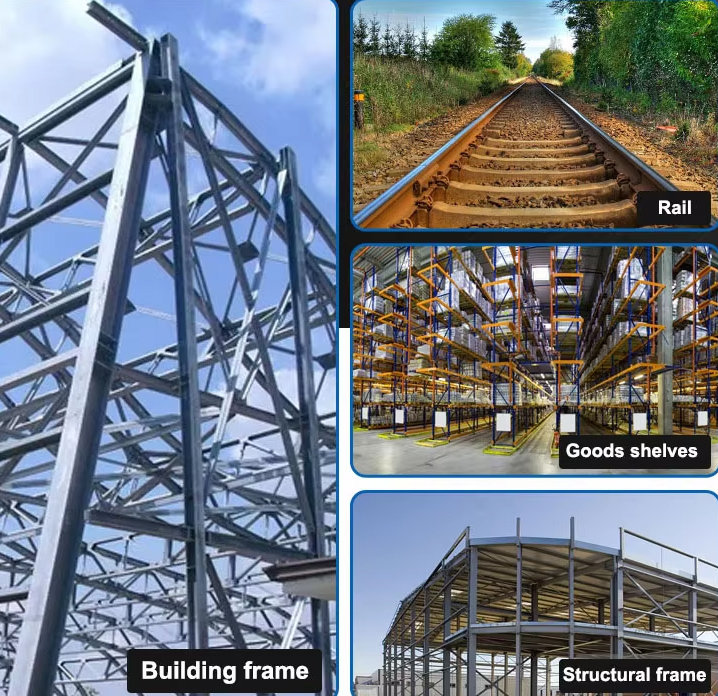

Application	Building structures, industrial plants and modern high-rise buildings
Standard	AISI,ASTM,BS,DIN,GB,JIS,EN,SUS,UNS etc
Inspection	ISO,SGS,BV and so on.
Delivery time	7-15 days or as the order quantity.

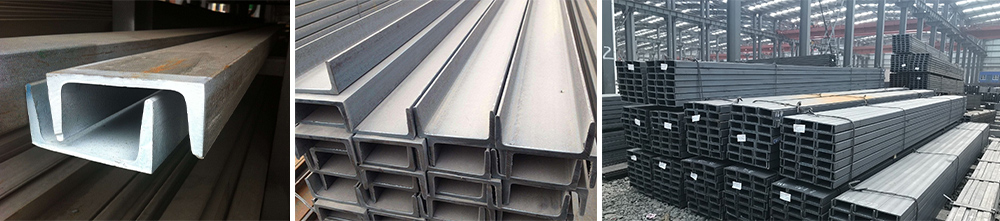

Channel Steel

Dimensions and weight specifications of ordinary channel steel
Specification and model	Size			Theoretical weight
	Height (h)	Leg width (b)	Waist thickness (d)
5	50	37	4.5	5.438
6.3	63	40	4.8	6.634
8	80	43	5	8.045
10	100	48	5.3	10.007
12	120	53	5.5	12.059
14#a	140	58	6	14.535
14#b	140	60	8	16.733
16#a	160	63	6.5	17.24
16#b	160	65	8.5	19.754
18#a	180	68	7	20.174
18#b	180	70	9	23
20#a	200	73	7	22.637
20#b	200	75	9	25.777
