C Purlin

1. Competitive price and quality from our own factory

2. Approved by ISO9001, CE, SGS every year

3. Best service with 7*24 hour’s reply

4. Flexible payment with T/T, 100%LC, etc

5. Smooth production ability (50000tons/month)

6. Quick delivery and standard exporting package

7. OEM/ODM

Contact Now E-Mail WhatsApp
Product Details

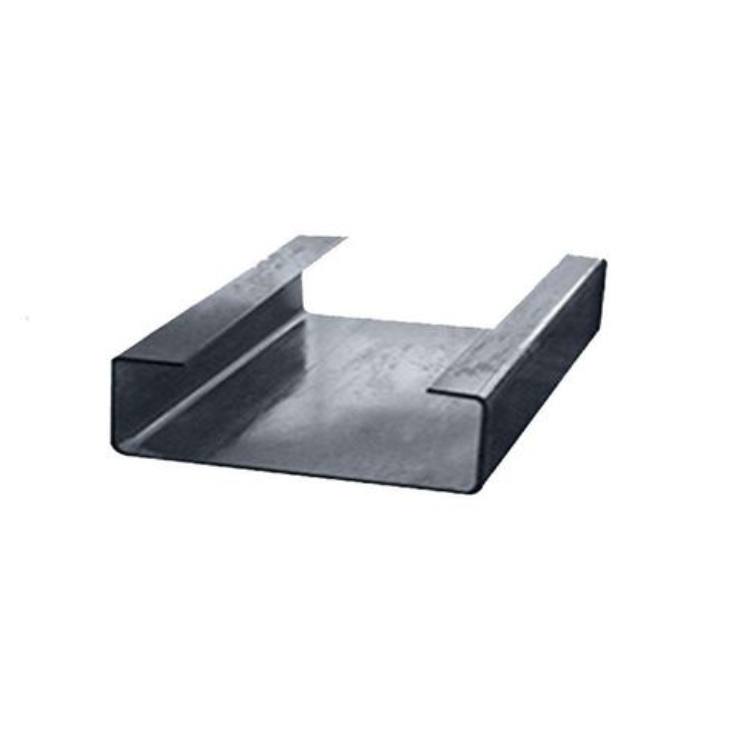

Product description:

The C purlin steel is automatically processed by the C-shaped steel forming machine. C-shaped steel forming machine can automatically complete the forming process of C-shaped steel according to the given size of C profile steel.

The surface finish options available include galvanized coated, carbon black, and mild steel.

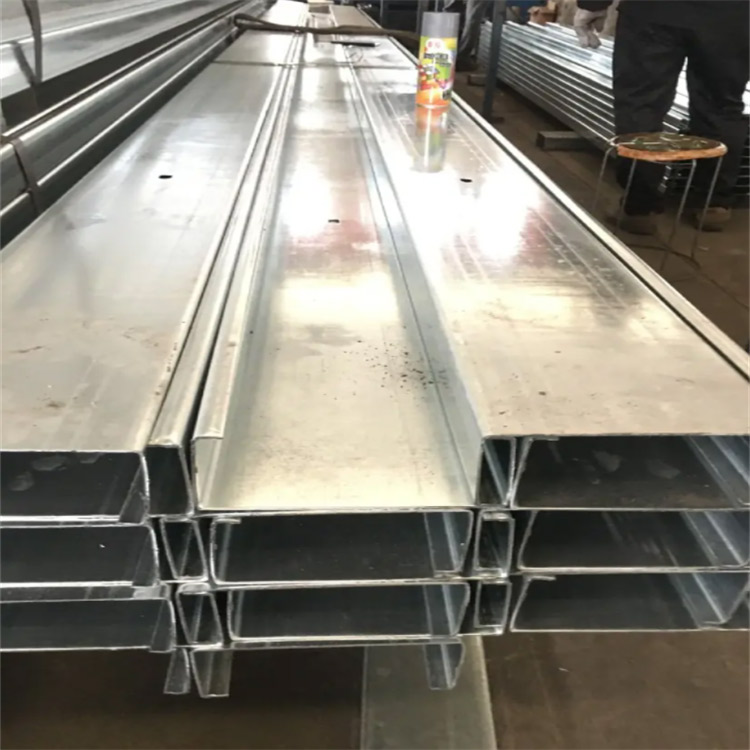

C Purlin


Product parameters:

Iterm

C purlin

Standard

AiSi/ASTM/bs/DIN/GB/JIS/EN

Material

ASTM A36 Q195 Q235 Q345 SS400 S235JR S355JR

Application

Building structures, curtain wall engineering, mechanical equipment, vehicle manufacturing

Packing

Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required

Payments

T/T L/C(30% Deposite)

Length

6m, 9m,12m,Large quantity can be customized

Technology

Cold Rolled.hot Rolled

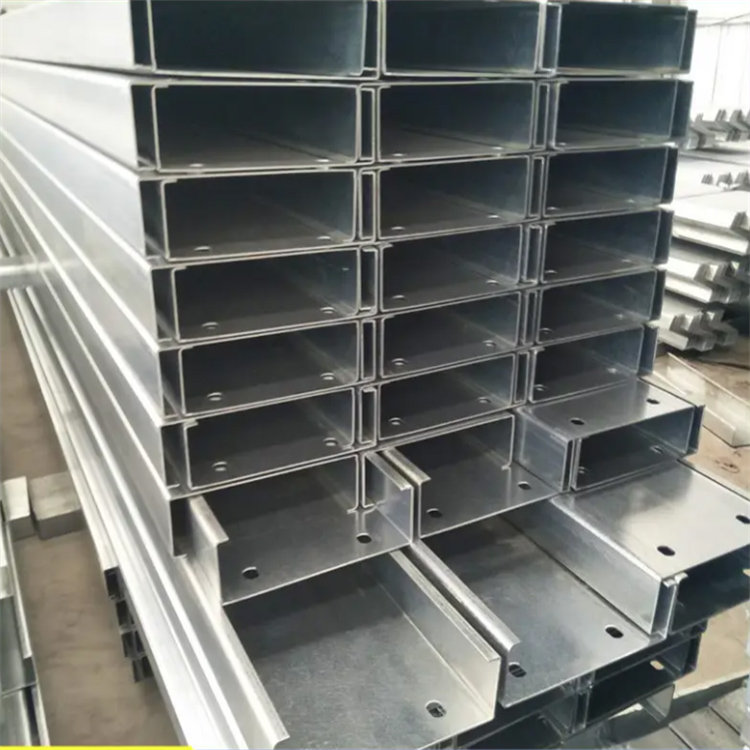

C Purlin



SPECIFICATION

SIZE

KG/M

5#

50*37*4.5

5.438

6.3#

63*40*4.8

6.634

6.5#

65*40*4.8

6.709

8#

80*43*5.0

8.045

10#

100*48*5.3

10.007

12#

120*53*5.5

12.059

14#A

140*58*6.0

14.535

14#B

140*60*8.0

16.733

16#A

160*63*6.5

17.24

16#B

160*65*8.5

19.752

18#A

180*68*7.0

20.174

18#B

180*70*9.0

23

20#A

200*73*7.0

22.337

20#B

200*75*9.0

25.777

22#A

220*77*7.0

24.999

22#B

220*79*9.0

28.453

25#A

250*78*7.0

27.41

25#B

250*80*9.0

31.335

25#C

250*82*11.0

35.26

28#A

280*82*7.5

31.427

28#B

280*84*9.5

35.823

28#C

280*86*11.5

40.219

30#A

300*85*7.5

34.463

30#B

300*87*9.5

39.173

30#C

300*89*11.5

43.883

32#A

320*88*8.0

38.083

32#B

320*90*10.0

43.107

32#C

320*92*12.0

48.131

36#A

360*96*9.0

47.814

36#B

360*98*11.0

53.466

36#C

360*100*13.0

59.118

40#A

400*100*10.5

58.928

40#B

400*100*12.5

65.204

40#C

400*104*14.5

71.488

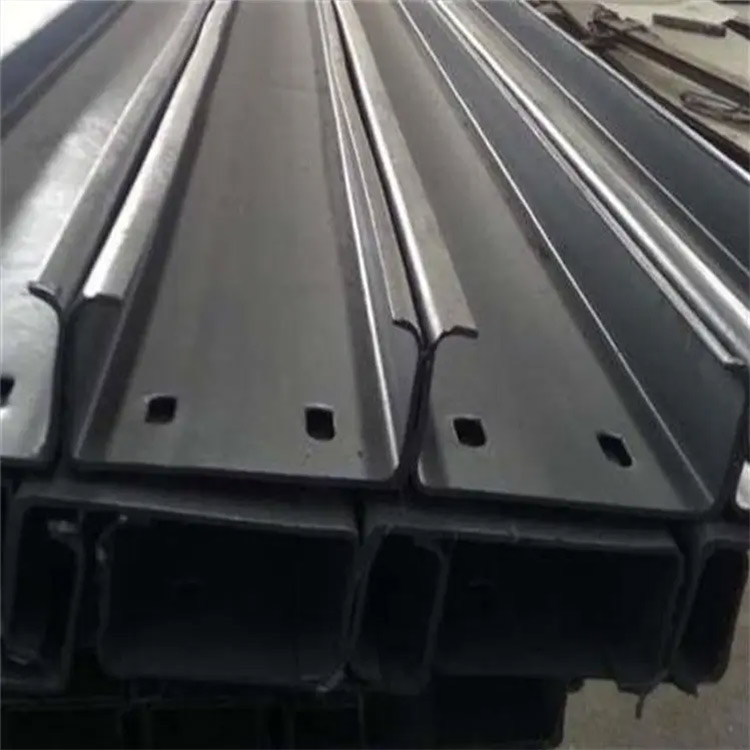

C Purlin

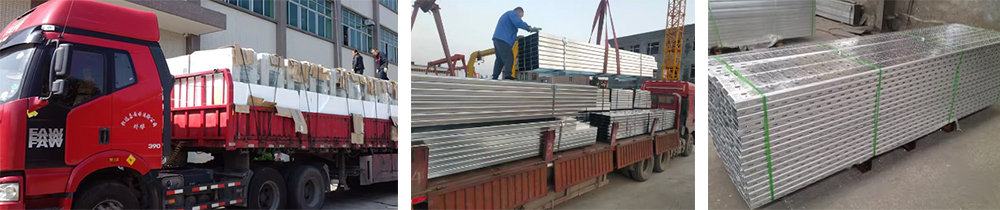

Transportation & packaging:

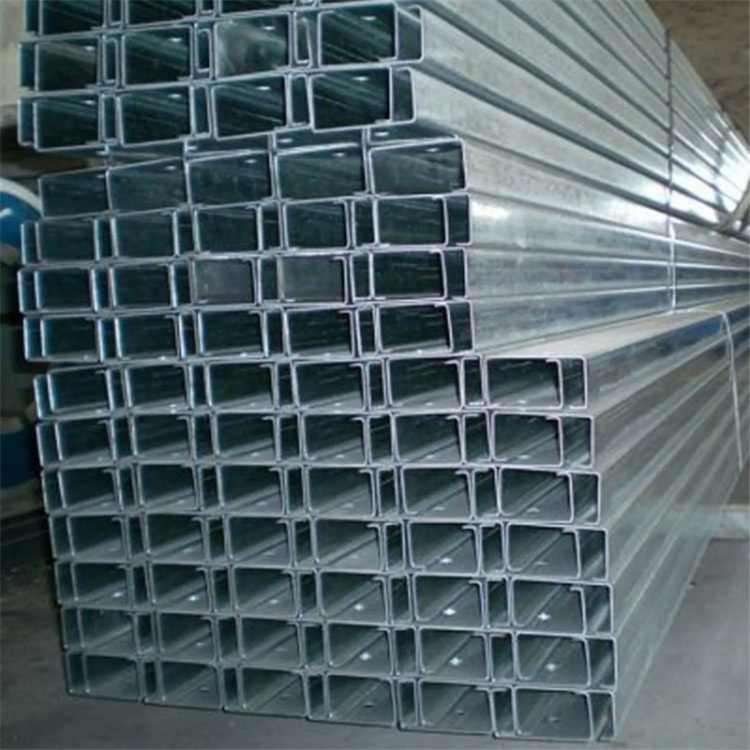

C Purlin

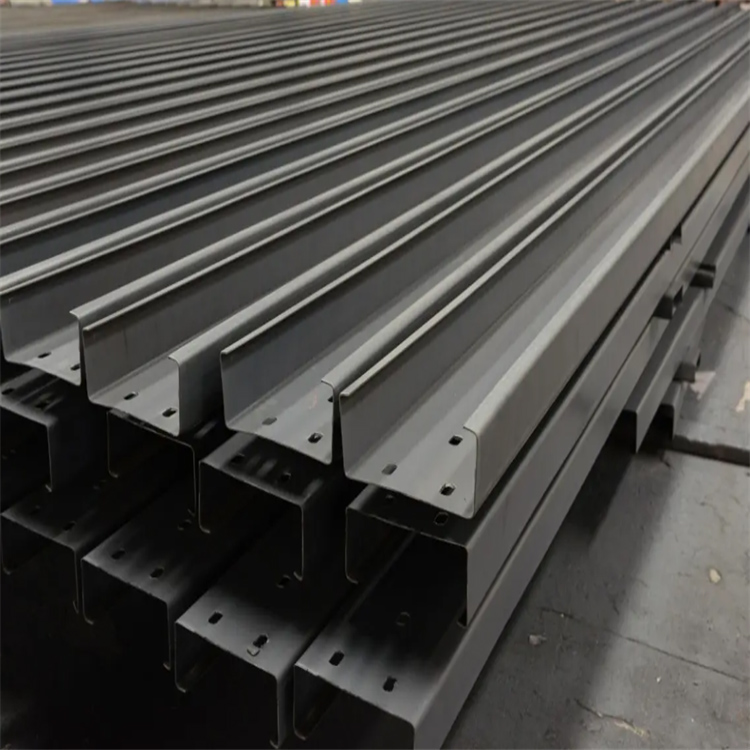

C Purlin


We offer high-quality service with 24/7 online support.
